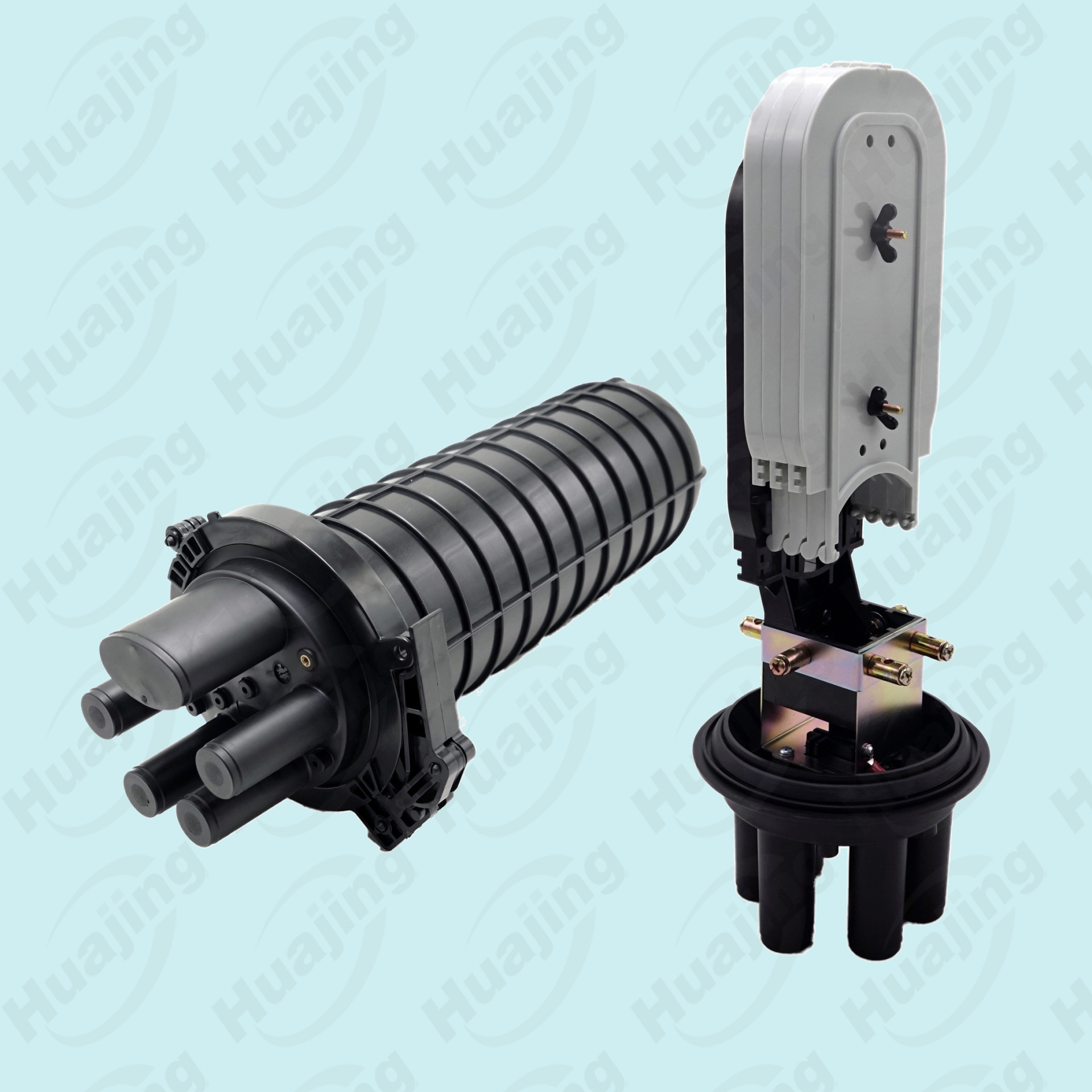

M9-JFT-BS/II Spltting Type

Application

GJS-M9/JFT-BS-Ⅱ is a type of dome closure series, used for direct connection during optical fiber transmission process, and provides joint connection protection.

Feature

1. All performance indicators meet the requirements of the latest national standards

2. The outer box body is made of high-strength engineering plastics; It has features of light weight, high mechanical strength, anti aging \corrosion and

lightning resistance, and long service life.

3. There are 8 circular cable ports and 1 oval port; Among them 1 oval port and 2 big circular ports can be used for cable digging

4. Can be used for pole mounting, wall mounting, and underground; The box body adopts mechanical sealing, which is easy to install and has a wide range of applications

5. Stacked structure splice tray and independent insulation grounding device make the optical fiber core configuration, expansion and the cable grounding flexible, convenient and safe.

6. Based on the needs, the closure have 2 type to be chosen, and splice tray have B, C, F and H type to be chosen.

Specification

Type	GJS-M9/JFT-BS(SC16)-(B,C,F,H)-Ⅱ				GJS-M9/JFT-BS(2SC32)-(B,C,F,H)-Ⅱ
Size(mm)	Φ330*390
Cable inlet/outlet	1 oval port，8 circular ports
Cable diameter(mm)	Φ7~Φ26
Max capacity of splicing tray (single core)	B	C	F	H	B	C	F	H
Max capacity of splicing tray (single core)	8	16	24	12	8	16	24	12
Max No of splicing tray	36 pcs	18 pcs	18 pcs	36 pcs	18 pcs	9 pcs	9 pcs	18 pcs
Max capacity (single core)	288	288	432	432	144	144	216	216
Max splitting	1:16 （1 pc）				1:32 （2 pcs）
Adapter type / Qty	SC simplex/17 pcs				2SC duplex/33 pcs
Outer packaging size（mm）/ quantity	420330320/1个
Total weight（kg）	≈10.5
